Tech specs

Read up on all the nitty-gritty details

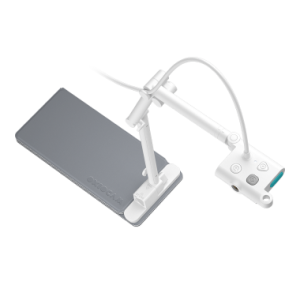

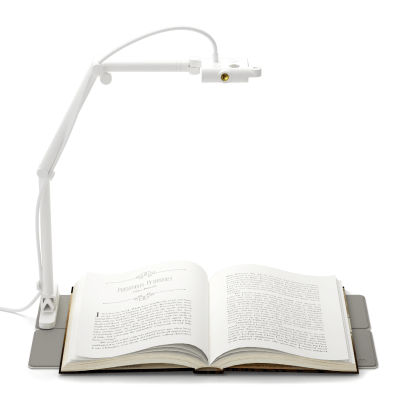

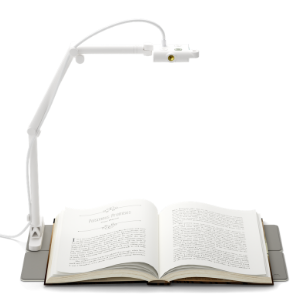

OKIOCAM S
Shop on amazon

3 MP camera
Super high definition up to 1920×1440 pixels
For Letter size (8.5” x 11”)
9.6” x 12.8” max. shooting area
9.5 ounces (269 grams)
Smaller baseplate

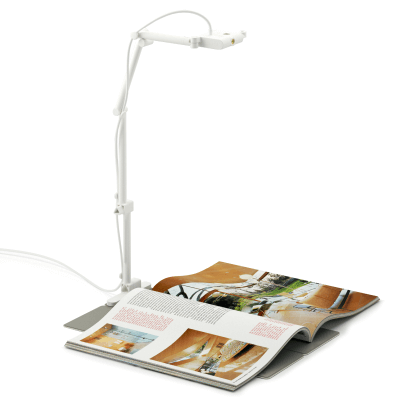

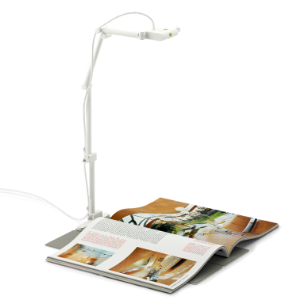

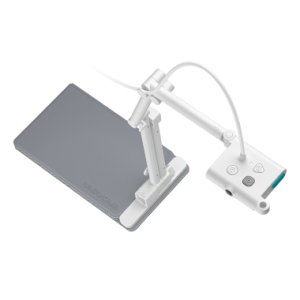

OKIOCAM T
Shop on amazon

5 MP camera
Super high definition up to 2592×1944 pixels
For Ledger size (11” x 17”)
13.7” x 18.9” max. shooting area
12.8 ounces (363 grams)
Larger baseplate and includes an arm extender

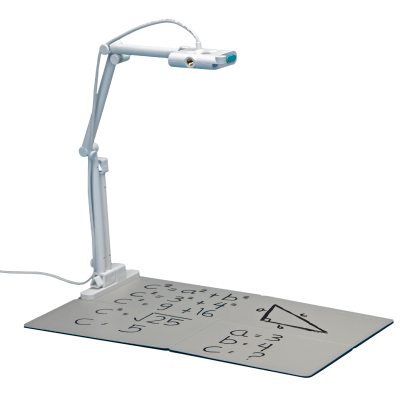

OKIOCAM T Plus
Shop on amazon

5 MP camera
Super high definition up to 2592×1944 pixels
For Ledger size (11” x 17”)
13.7” x 18.9” max. shooting area
12.8 ounces (363 grams)
Dry-erase baseplate and includes an arm extender

Camera

OKIOCAM S

OKIOCAM T

OKIOCAM T Plus

OKIOCAM S

3 MP sensor
Supported resolutions:
1920×1440 / 1920×1080 / 1600×1200
1280×720 / 1024×768 / 800×600

OKIOCAM T

5 MP sensor
Supported resolutions:
2592×1944 / 2592×1458 / 2048×1536
1920×1440 / 1920×1080 /1600×1200
1280×720 / 1024×768 / 800×600

OKIOCAM T Plus

5 MP sensor
Supported resolutions:
2592×1944 / 2592×1458 / 2048×1536
1920×1440 / 1920×1080 /1600×1200
1280×720 / 1024×768 / 800×600

Auto Focus, Auto Exposure (auto light correction), and Auto White Balance (auto color temperature correction) with one-touch button
3.9 inches of macro distance
f/2.0 aperture
Four-element lens
Full HD (1920×1080) video recording up to 30fps
Digital zoom up to 6x

Size and weight

OKIOCAM S

OKIOCAM T

OKIOCAM T Plus

Folded
Folded

OKIOCAM S

Width: 7.36 inches (187mm)
Depth: 3.15 inches (80mm)
Height: 1.65 inches (42mm)

Folded

OKIOCAM T

Width: 7.64 inches (194mm)
Depth: 3.94 inches (100mm)
Height: 1.65 inches (42mm)

Folded

OKIOCAM T Plus

Width: 7.64 inches (194mm)
Depth: 3.94 inches (100mm)
Height: 1.65 inches (42mm)

Open
Open

OKIOCAM S

Baseplate Width: 13.35 inches (339mm)
Baseplate Depth: 6.3 inches (160mm)
Height: 11.93 inches (303mm)

Open

OKIOCAM T

Baseplate Width:13.35 inches (339mm)
Baseplate Depth: 7.95 inches (202mm)
Height: 11.93 inches (303mm)
16.93 inches (430mm) with arm extender

Open

OKIOCAM T Plus

Baseplate Width:13.35 inches (339mm)
Baseplate Depth: 7.95 inches (202mm)
Height: 11.93 inches (303mm)
16.93 inches (430mm) with arm extender

Weight
Weight

OKIOCAM S

9.5 ounces (269 grams)

Weight

OKIOCAM T

12.8 ounces (363 grams)

Weight

OKIOCAM T Plus

12.8 ounces (363 grams)

USB Cable Length
USB Cable Length

OKIOCAM S

4.8 ft (146cm)

USB Cable Length

OKIOCAM T

4.8 ft (146cm)

USB Cable Length

OKIOCAM T Plus

4.8 ft (146cm)

Mechanical

Magnetic foldable baseplate
Three‑axis camera head rotation
Detachable camera head
Compatible with 1/4”-20 standard tripod mounting thread
Detachable arm and base
Glass fiber reinforced arm

System compatibility

Chrome OS
Windows 7, Windows 8, Windows 10
macOS X 10.12 or later

Chrome Browser version 65 or later

Included free software

OKIOCAM Snapshot and Recorder (Desktop App & Chrome App)
OKIOCAM Time-Lapse (Desktop App & Chrome App)
OKIOCAM Stop Motion (Desktop App & Chrome App)
OKIOCAM for Google Slides (add-on)
OKIOCAM for Google Docs (add-on)
OKIOCAM for Google Sheets (add-on)
OKIOCAM for Google Forms (add-on)
with more to come…
